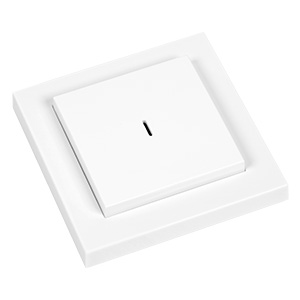

STH01 Temperature humidity sensor Format 55
The STH01 transmits the current measured values for temperature and humidity every 10 minutes.
In addition, the manual transmission of the measured values is possible at any time by pressing the front button.
The transmitted values can then be processed by the APC01 Control Center and used in moods.
Based on this, for example the room climate can be controlled automatically via the Smarthome Server in connection with thermostats, shutters or fans.
In addition, the STH01 has a battery control function. If the capacity of the battery is low, this is signaled on the device by an LED and transmitted to the Smarthome Server.
The STH01 can not be operated without the Control Center APC01!
The transmitted values can then be processed by the APC01 Control Center and used in moods.
Based on this, for example the room climate can be controlled automatically via the Smarthome Server in connection with thermostats, shutters or fans.
In addition, the STH01 has a battery control function. If the capacity of the battery is low, this is signaled on the device by an LED and transmitted to the Smarthome Server.
The STH01 can not be operated without the Control Center APC01!
STH01EN5001A01-02K
Technical specifications
| Coding | Easywave neo |
| Frequency | 868,30 MHz |
| Channels | 1 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 1x 3V batteries CR2032 |
| Humidity measurement range | 20% to 80% rF ±5 % rF |
| Temperature measurement range | 0 °C to +60 °C ±1 °C |
| Transmission of measured values | every 10 minutes or when a transmitter button is pressed |
| Function | measuring and transmitting temperature and air humidity values |
| Operating temperature | -20 °C to +60 °C |
| Dimensions | rocker: 55 x 55 x 9 mm mounting plate: 71 x 71 x 1.5 mm |
| Weight | 34,0 g (including battery) |
| Color | white similar to RAL 9003 |
Scope of delivery
- Temperature humidity sensor
- Battery
- Mounting plate
- Mounting material
- Operating manual
Accessories (optional)
| RTS22-ACC-01-01P | Mounting plate, white |
RTS22-ACC-01-01P
Models
| Product numbers | Description |
|---|---|
| STH01EN5001A01-02K | Temperature humidity sensor, Easywave, 1x DATA, for server, Format 55, white |
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.| Manufacturer | Products (Brands) |
|---|---|
| BERKER | B1 B3 B7 Glas S1 |
| GIRA | E2 Event Esprit Standard55 |
| JUNG | A500 AS500 A Creation Aplus |
| MERTEN | M-Arc M-Plan M-Smart M-Star |
| ELSO | JOY RIVA with combination frame 55 SCALA with combination frame 55 FASHION with combination frame 55 |
