RTS40 Radio motion detector Format 55
The RTS40 is a battery-operated radio motion detector for inside use. When motion is detected, the detector transmits an ON signal
to an Easywave radio receiver, depending on the settings. After the set runtime has expired, an OFF-signal is transmitted.
There are two product versions available:
The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.
ON/OFF/AUTO:
The motion detector function can be permanently switched ON, OFF or to AUTOMATIC mode.AUTO:
The motion detector reacts automatically according to the configured settings.The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.
RTS40E5001B0x-K
Technical specifications
| Coding | factory coding with Easywave telegram |
| Frequency | 868,30 MHz |
| Channels | 1 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 1x 3V battery CR2032 |
| Function | motion detection switching ON/OFF (2-button operation) trigger function |
| Brightness control | between 1 lx and 150 lx or can be switched off |
| Run-on time | 5 second to 131 minutes; adjustable in stages |
| Operating temperature | -20 °C to +60 °C |
| Dimensions | cover: 55 x 55 x 17,5 mm mounting plate: 71 x 71 x 1.5 mm |
| Weight | 30 g (including battery) |
| Color | white similar to RAL 9003 |
Models

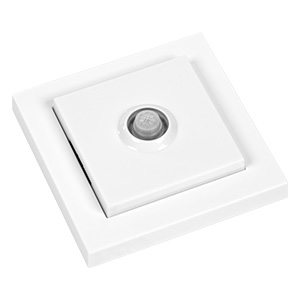

RTS40E5001B01-K
AUTO
AUTO

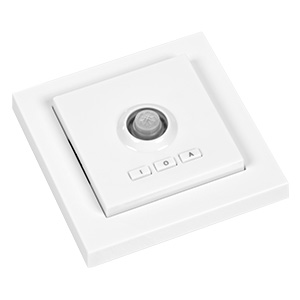

RTS40E5001B02-K
ON/OFF/AUTO
ON/OFF/AUTO
Scope of delivery
- Motion detector
- 1 battery
- Mounting plate
- Adhesive pads
- Operating manual
Accessories (optional)
| RTS22-ACC-01-01P | Mounting plate, white |
RTS22-ACC-01-01P
Models
| Product numbers | Description |
|---|---|
| RTS40E5001B01-K | Motion detector, Easywave, Format 55, 1x AUTO, white |
| RTS40E5001B02-K | Motion detector, Easywave, Format 55, 1x ON/OFF/AUTO, white |
Detection Range:
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.| Manufacturer | Products (Brands) |
|---|---|
| BERKER | B1 B3 B7 Glas S1 |
| GIRA | E2 Event Esprit Standard55 |
| JUNG | A500 AS500 A Creation Aplus |
| MERTEN | M-Arc M-Plan M-Smart M-Star |
| ELSO | JOY RIVA with combination frame 55 SCALA with combination frame 55 FASHION with combination frame 55 |
